Electric Arc Furnace

Electric
Arc Furnace

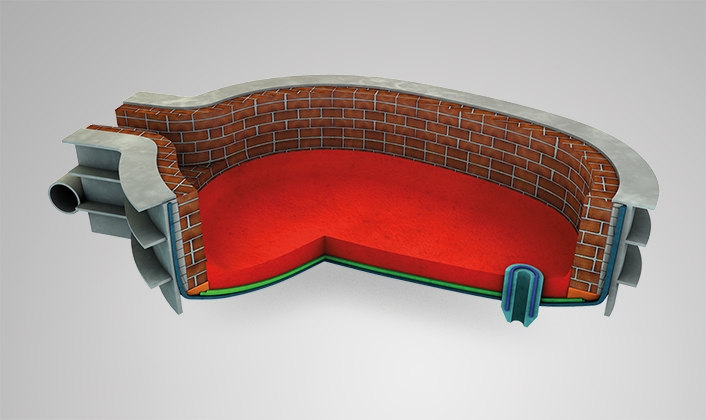

The electric arc furnace for steelworks is a piece of equipment capable of reaching 3,800°C: its vault, where the graphite electrodes are located, has to withstand significant thermal shocks. Refractory masses, EBT filling sand, precast shapes…: Insertec has developed a range of solutions specially designed for the lining of EAF.

Sections

Refractory Masses

Insetab G

Regular cement castable
Main component: tabular alumina
Max service temp.: 1800
Density: 2900 kg/m³

Ultratab 90 V

Ultra low cement castable
Main component: tabular alumina
Max service temp.: 1750
Density: 3200 kg/m³

Permaplast 90 V

Phosphatic plastic mass
Main component: magnesite
Max service temp.: 1800
Density: 2800 kg/m³

Insemag 90 G

Hot projecting mass
Main component: magnesite
Max service temp.: 1800
Density: – kg/m³

Insemag 88 M

Hot projecting mass
Main component: magnesite
Max service temp.: 1800
Density: – kg/m³

Filling sand

Botalite 5

Granulated mass
Main component: olivine
Max service temp.: –
Density: 1750 kg/m³

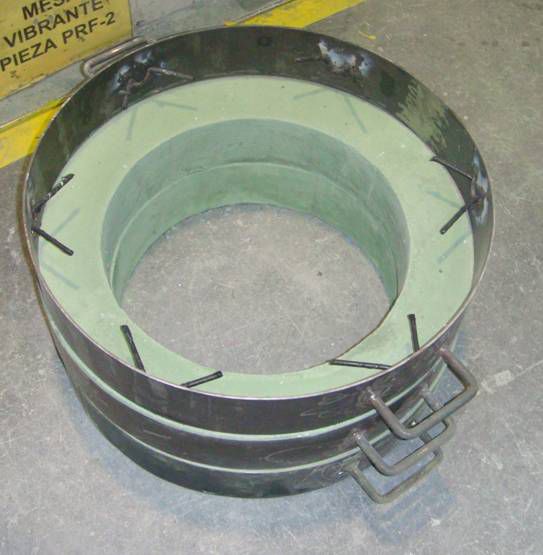

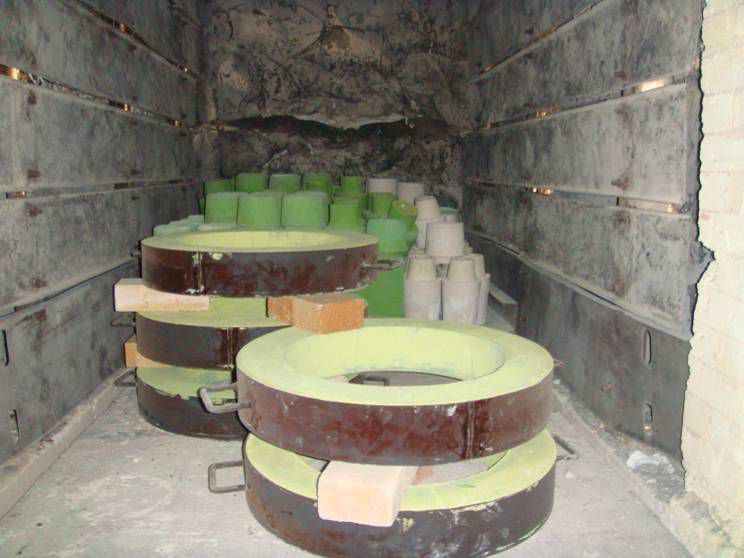

Deltas - Economizators

EBT filling sand

The BOTALITE is a ganulated material to fill the E.B.T. based on olivine. The olivine is a magnesium silicate. Cause to the lack of flambles and its good desity/stability relation, it does not require any kind of preheating before using.

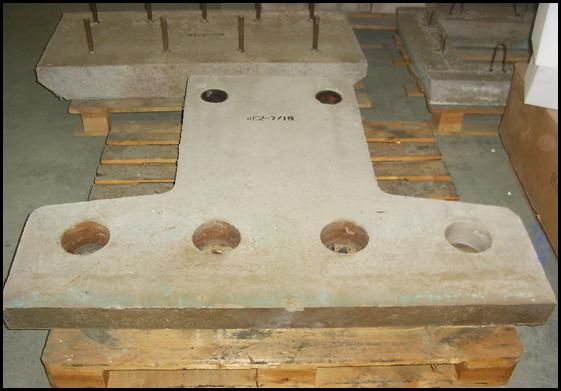

Precast shapes

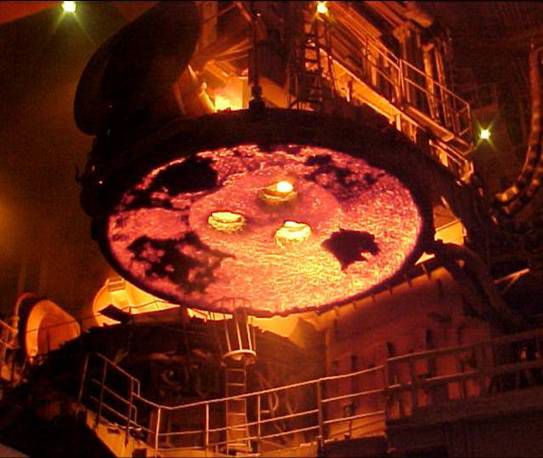

• We design delta sections for the roof centers for EAF in precast shapes with ultralow cement castable.
• Less stops in the process.
• Longer life compare with traditional lining.
• Piece ready to use.
• Minium instalation time

Other Steel Works Equipment

Ladles

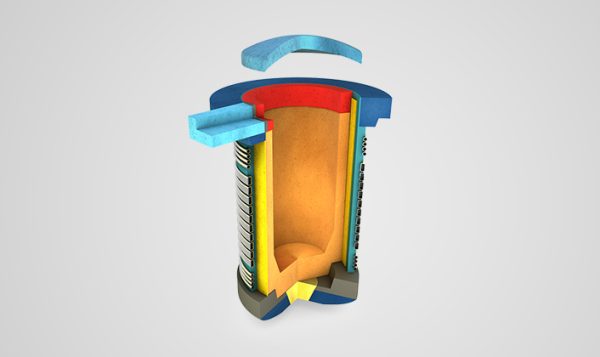

Coreless Induction Furnace

Electric Arc Furnace

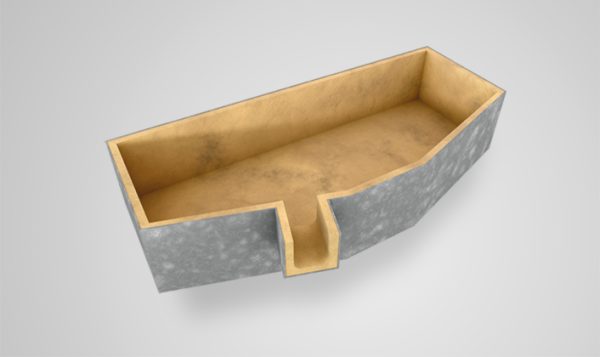

Tundish
