Channel Furnace

Channel
Furnace

The holding/channel furnace is one of the key pieces of equipment in iron foundry plants. The quality of the lining is of great importance. Our refractory products guarantee maximum bath temperature maintenance, but also offer high corrosion resistance.

Sections

Upper walls

Inseloc 81 SR

Low cement castable
Main component: bauxite
Max service temp.: 1700
Density: 2800 kg/m³

Insecor 70 V

Dry mix
Main component: andalusite
Max service temp.: 1650
Density: 2600 kg/m³

Working lining

Inseloc 95 V

Low cement castable
Main component: brown fused alumina
Max service temp.: 1770
Density: 3000 kg/m³

Insetab SP

Low cement castable
Main component: tabular alumina
Max service temp.: 1800
Density: 2900 kg/m³

Bereloc 60 Z

Self flowing castable
Main component: andalusite
Max service temp.: 1700
Density: 2950 kg/m³

Insetab G

Regular cement castable
Main component: tabular alumina
Max service temp.: 1800
Density: 2900 kg/m³

Ultraloc B

Ultra low cement castable
Main component: bauxite
Max service temp.: 1700
Density: 2950 kg/m³

Insecor 95 S

Dry ramming mass
Main component: brown fused alumina
Max service temp.: 1650
Density: 2900 kg/m³

Cover

Inseloc 61 SR

Low cement castable
Main component: andalusite
Max service temp.: 1650
Density: 2500 kg/m³

Inselite 1700

Insulate regular castable
Main component: vermiculita + chamota
Max service temp.: 1100
Density: 1000 kg/m³

Insecast 60 N

Regular cement castable
Main component: bauxite
Max service temp.: 1600
Density: 2750 kg/m³

Inlet - outlet

Inseloc 95 V

Low cement castable
Main component: brown fused alumina
Max service temp.: 1770
Density: 3000 kg/m³

Bereloc 60 Z

Self flowing castable
Main component: andalusite
Max service temp.: 1700
Density: 2950 kg/m³

Ultratab 90 V

Ultra low cement castable
Main component: tabular alumina
Max service temp.: 1750
Density: 3200 kg/m³

Incrotab 10 SR

Low cement castable
Main component: tabular alumina
Max service temp.: 1700
Density: 3000 kg/m³

Inductor Join

Insepatch SP

Dry mix
Main component: magnesite
Max service temp.: 1750
Density: 2600 kg/m³

Insepatch TK

Trowellable mass
Main component: tabular alumina
Max service temp.: 1750
Density: 2600 kg/m³

Insemor 90

Trowellable mass
Main component: brown fused alumina
Max service temp.: 1750
Density: 2400 kg/m³

Insecrom 99 F

Protective paint
Main component: chromium oxide
Max service temp.: 1800
Density: – kg/m³

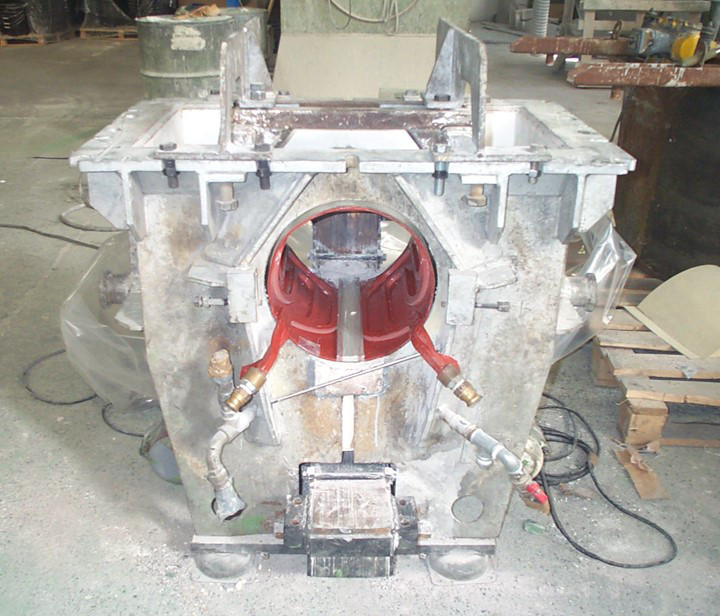

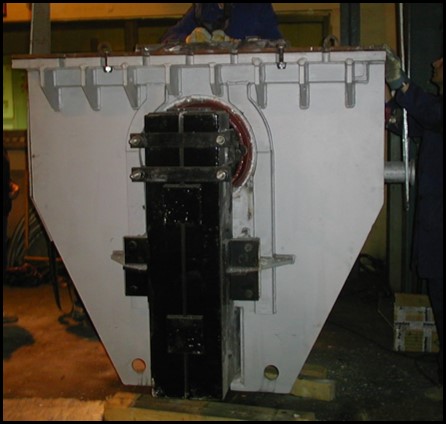

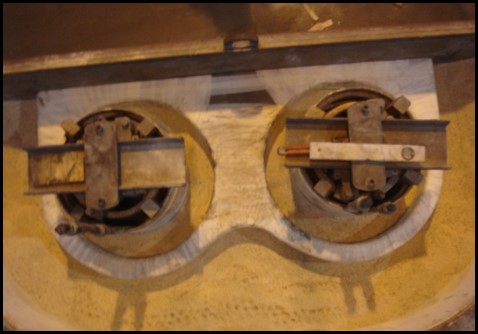

Inductor Working lining

Insemag SP

Dry mix
Main component: magnesite
Max service temp.: 1800
Density: 2700 kg/m³

Insecor 96 S

Dry mix
Main component: brown fused alumina
Max service temp.: 1700
Density: 2900 kg/m³

Insetag 85 I

Dry mix
Main component: corundum
Max service temp.: 1800
Density: 2800 kg/m³

Cuarsil IS4 AT

Dry vibratable mass silica
Main component: quartzite
Max service temp.: 1400 – 1650
Density: 2080 kg/m³

An inductor lining must have the following properties:

• Melting point higher than the furnace body.
• Low porosity and high density.
• Chemically it must be compatible with the melted metal.
• Its electrical conductivity must be very low.

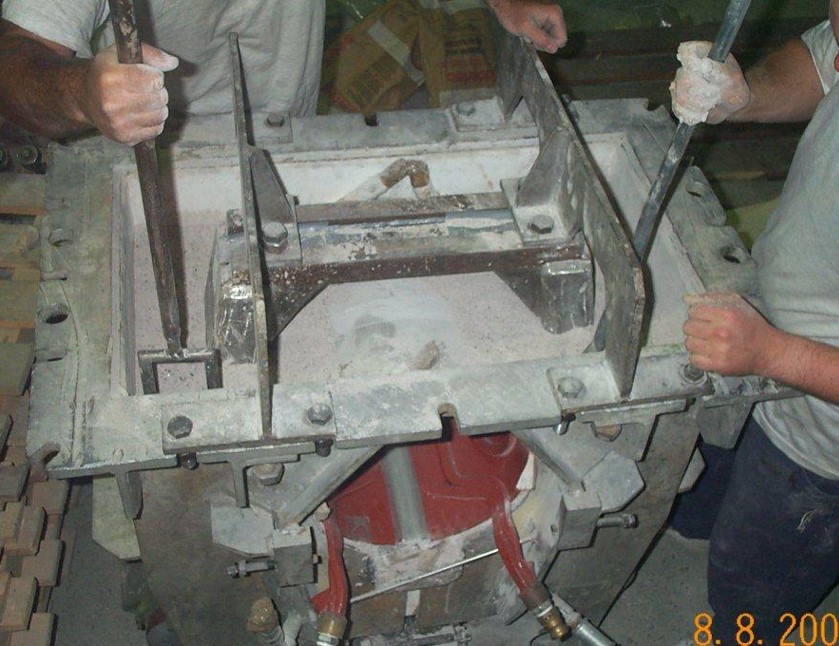

• Easy to line and sinter.
