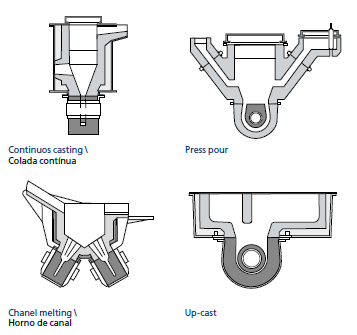

Melting, pouring and casting vessels

Melting, pouring
and casting vessels

Entry point of the molten material, the elbow of non-ferrous foundry vessel is an area where there is a high risk of clogging and scaling. In response to this problem, we have developed a range of low porosity, high-capacity self-castings that are resistant to slag and metal attack: BERELOC.

Sections

Working layer

Inseloc 95 SR

Low cement castable
Main component: tabular alumina
Max service temp.: 1770
Density: 3000 kg/m³

Insecor 90 CU

Dry mix
Main component: white fused alumnina
Max service temp.: 1650
Density: 2800 kg/m³

Bereloc 15 CSI

Self flowing castable
Main component: corundum
Max service temp.: 1650
Density: 3000 kg/m³

Spout

Insetab G

Regular cement castable
Main component: tabular alumina
Max service temp.: 1800
Density: 2900 kg/m³

Inseloc 60 SR

Low cement castable
Main component: mullita
Max service temp.: 1650
Density: 2500 kg/m³

Silpatch

Dry ramming plastic mass
Main component: quartzite
Max service temp.: 1600
Density: 2100 kg/m³

Inseplast 70 PG

Plastic mass
Main component: alumina
Max service temp.: 1700
Density: 2700 kg/m³

Lounders

Insetab G

Regular cement castable
Main component: tabular alumina
Max service temp.: 1800
Density: 2900 kg/m³

Insecast 60 N

Regular cement castable
Main component: bauxite
Max service temp.: 1600
Density: 2750 kg/m³

Insecast 85 N

Regular cement castable
Main component: bauxite
Max service temp.: 1700
Density: 2750 kg/m³

Inseloc 61 SR

Low cement castable
Main component: andalusite
Max service temp.: 1650
Density: 2500 kg/m³

Inselite 1600

Insulate regular castable
Main component: alumina
Max service temp.: 1600
Density: 1100 kg/m³

Insertec has developed a new range of self-flowing castable.

• Low-porosity.
• Minimize the attack of slag and metal.
